Get values of radar data at location of CMLs and gauges¶

This notebook shows how poligrain and its classes GridAtPoint and GridAtLine can be used to get data from a gridded product at specific points or averaged along specific lines.

The typical use cases for this are:

comparison of CML or SML data with weather radar data
calculation of differences between radar and ground-based (gauges, CMLs) for radar-rainfall-adjustment

The radar data processing package wradblib solves this case for gridded data and points, but was not easily extendible for working with line geometries. Hence, in poligrain we reuse the wradlib approach for points and provide an implemantion for the case where we want to get gridded data along lines. For both, point and line data, we use a similar API via the classes GridAtPoint and GridAtLine.

[1]:

import matplotlib.pyplot as plt
import xarray as xr

import poligrain as plg

Load example data from OpenMRG¶

We use the gauge, radar and CML data provided by the OpenMRG dataset, see Andersson et al. 2022 https://doi.org/10.5194/essd-14-5411-2022

Here we only look at a small subest.

Note that the CML data was processed with the simple standard processing done here. CML data quality can be further improved with more sophisticated processing methods. For more details and an overview of methods, please refer to the CML processing package pycomlink.

[2]:

ds_cmls = xr.open_dataset("data/openMRG_cmls_20150827_12hours.nc")

ds_city_gauges = xr.open_dataset("data/openMRG_city_gauges_20150827.nc")
ds_city_gauges = ds_city_gauges.rename_dims({"station_id": "id"})
ds_city_gauges = ds_city_gauges.rename_vars({"station_id": "id"})

ds_radar = xr.open_dataset("data/openMRG_example_rad_20150827_90minutes.nc")
ds_radar.coords["lat"] = ds_radar.lat
ds_radar.coords["lon"] = ds_radar.lon

Project coordinates to UTM zone for Europe

[3]:

# Project coordinates of city gauges
(
    ds_city_gauges.coords["x"],
    ds_city_gauges.coords["y"],
) = plg.spatial.project_point_coordinates(
    ds_city_gauges.lon,
    ds_city_gauges.lat,
    "EPSG:25832",
)

# Project coordinates of radar
(
    ds_radar.coords["x_grid"],
    ds_radar.coords["y_grid"],
) = plg.spatial.project_point_coordinates(
    ds_radar.lon,
    ds_radar.lat,
    "EPSG:25832",
)

# Project coordinates for CMLs
(
    ds_cmls.coords["site_0_x"],
    ds_cmls.coords["site_0_y"],
) = plg.spatial.project_point_coordinates(
    ds_cmls.site_0_lon, ds_cmls.site_0_lat, "EPSG:25832"
)
(
    ds_cmls.coords["site_1_x"],
    ds_cmls.coords["site_1_y"],
) = plg.spatial.project_point_coordinates(
    ds_cmls.site_1_lon, ds_cmls.site_1_lat, "EPSG:25832"
)

We remove very short CMLs (< 1 km) and CMLs which have frequencies below 30 GHz combined with a length below 2 km. We do this because these CMLs are fairly insensitive to rainfall and this might provide less accurate rainfall estimates. That is not say, that one cannot use rainfall estimates of these CMLs. But since CML data processing and the analysis of the resulting rainfall estimates is not the focus in this example, we remove the more insensitive CMLs.

We also select only one sublink because here, we are not interesed in comparing or leveraging the information from the two rainfall estimates of the two sublinks that each CML provides.

[4]:

ds_cmls = ds_cmls.where(
    ~((ds_cmls.length / 1000 < 2) & (ds_cmls.frequency / 1000 < 30)), drop=True
)
ds_cmls = ds_cmls.where(ds_cmls.length / 1000 > 1, drop=True).isel(sublink_id=0)

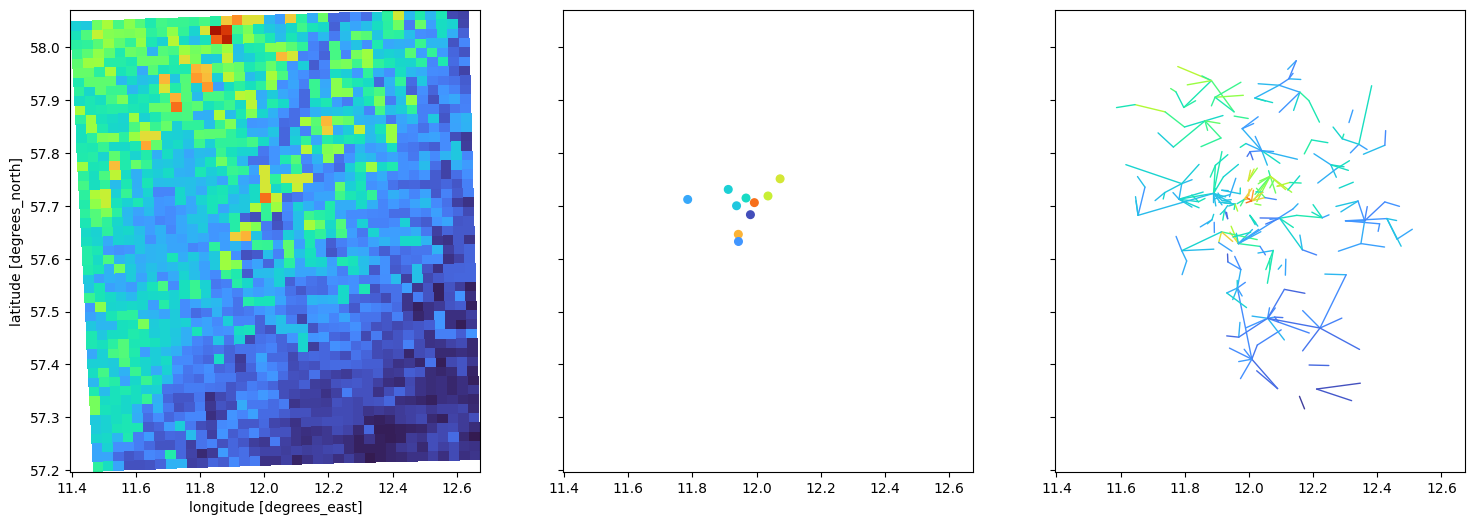

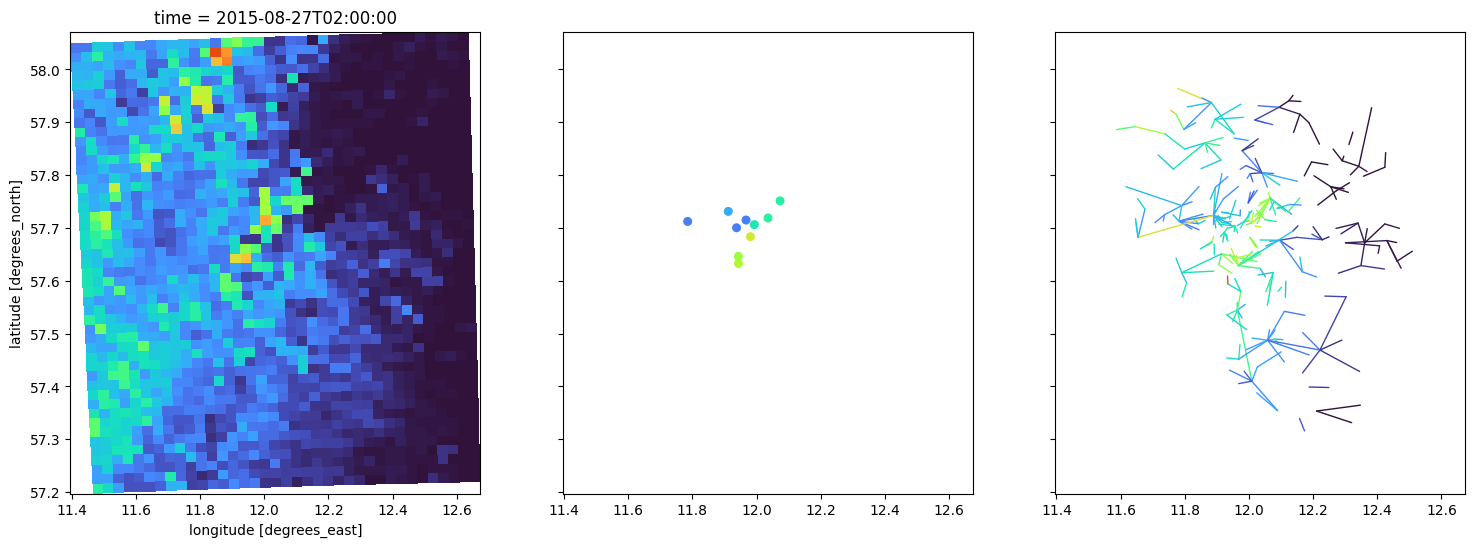

Quick look at data on a map¶

Here we first aggregate the rainfall data of all sensors to 1 hour to see the large-scale rainfall pattern

[5]:

ds_radar_1h = ds_radar.resample(time="h", label="right").mean()
ds_city_gauges_1h = ds_city_gauges.resample(time="h", label="right").sum()
ds_cmls_1h = ds_cmls.R.resample(time="h", label="right").mean()

[6]:

t = "2015-08-27T02:00:00"
vmin = 0
vmax = 10
cmap = "turbo"

fig, axs = plt.subplots(1, 3, figsize=(18, 6), sharex=True, sharey=True)
ds_radar_1h.sel(time=t).rainfall.plot(
    x="lon", y="lat", cmap=cmap, vmin=vmin, vmax=vmax, ax=axs[0], add_colorbar=False
)
axs[1].scatter(
    ds_city_gauges.lon,
    ds_city_gauges.lat,
    c=ds_city_gauges_1h.sel(time=t).rainfall_amount,
    cmap="turbo",
    vmin=vmin,
    vmax=vmax,
    s=30,
)
ds_cmls_1h.sel(time=t).plg.plot_cmls(vmin=vmin, vmax=vmax, cmap="turbo", ax=axs[2]);

../_images/notebooks_Get_grid_at_lines_and_points_11_0.png

Plot resulting time series¶

Now we compare the time series that we derived from the radar data with the observations of the sensors. We can see that there is a quite good match in general regarding timing and magnitude. But there are also clear difference, both for gauges vs. radar and for CML vs. radar. These diffefence can be used for radar adjustment. But this is not the topic of this notebook and not the scope of poligrain.

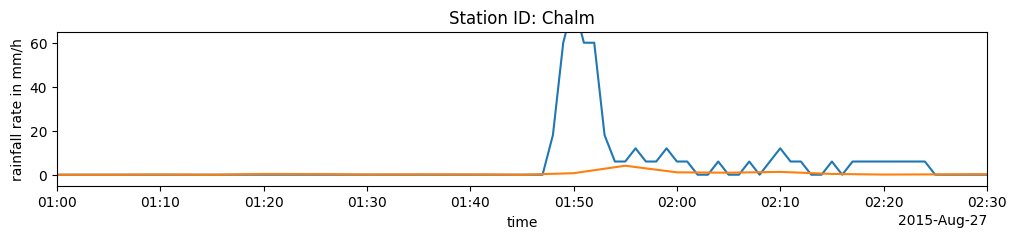

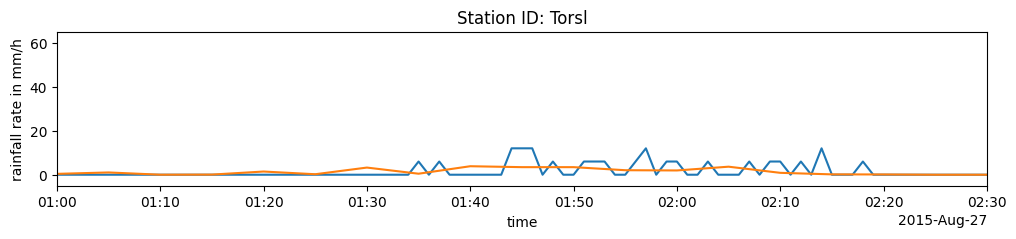

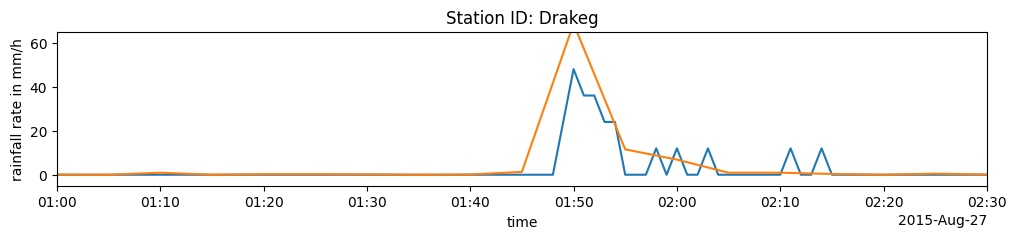

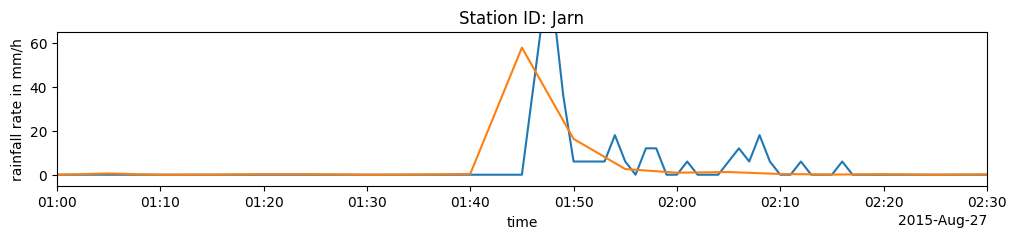

Gauge rain rates vervus the associated radar values¶

[12]:

for i in [0, 3, 4, 7]:
    (ds_city_gauges.isel(id=i).rainfall_amount * 60).plot(figsize=(12, 2))
    radar_at_points.isel(id=i).plot()
    plt.xlim(radar_at_points.time.data[0], radar_at_points.time.data[-1])
    plt.ylim(-5, 65)
    plt.ylabel("rainfall rate in mm/h")
    plt.title(f"Station ID: {ds_city_gauges.isel(id=i).id.data}")
    plt.show()

../_images/notebooks_Get_grid_at_lines_and_points_26_0.png

../_images/notebooks_Get_grid_at_lines_and_points_26_1.png

../_images/notebooks_Get_grid_at_lines_and_points_26_2.png

../_images/notebooks_Get_grid_at_lines_and_points_26_3.png

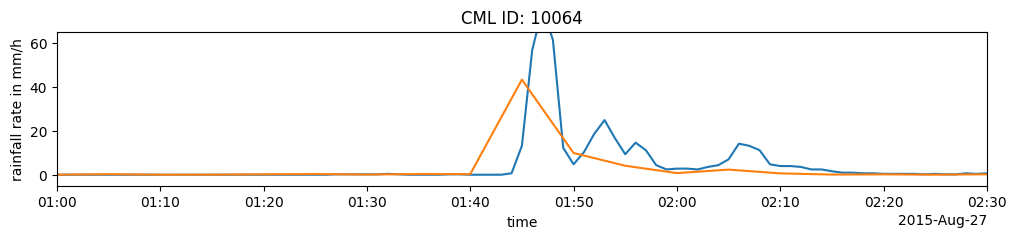

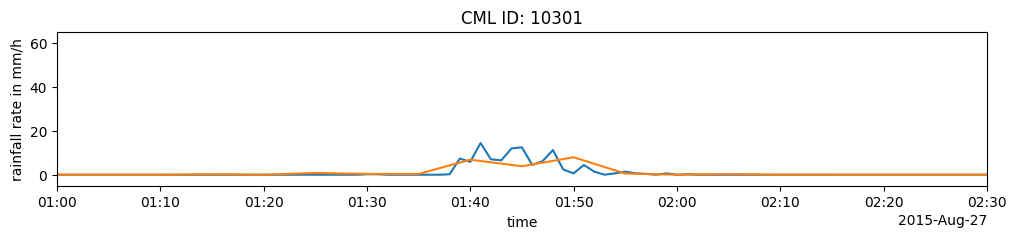

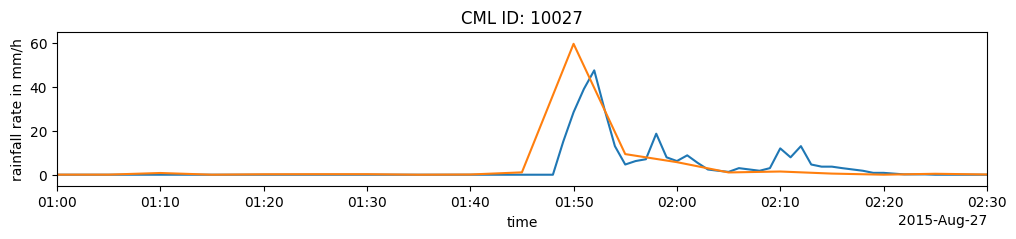

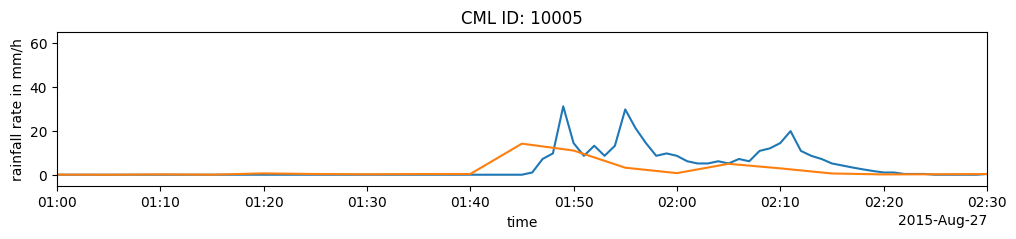

CML rain rates vs mean radar rain rate along CML¶

[13]:

for i in [0, 10, 30, 210]:
    ds_cmls.isel(cml_id=i).R.plot(figsize=(12, 2))
    radar_along_cml.isel(cml_id=i).plot()
    plt.xlim(radar_along_cml.time.data[0], radar_along_cml.time.data[-1])
    plt.ylim(-5, 65)
    plt.ylabel("rainfall rate in mm/h")
    plt.title(f"CML ID: {ds_cmls.isel(cml_id=i).cml_id.data}")
    plt.show()

../_images/notebooks_Get_grid_at_lines_and_points_28_0.png

../_images/notebooks_Get_grid_at_lines_and_points_28_1.png

../_images/notebooks_Get_grid_at_lines_and_points_28_2.png

../_images/notebooks_Get_grid_at_lines_and_points_28_3.png

Plot map of radar data at point and lines¶

We accumulate the rainfall rates, which stem from the 5-minute radar data in mm/h, over the full period. We plot these accumulations for the radar rainfall field, the derived radar data at the gauges and the derived path-averaged radar data for each CML.

[14]:

vmin = 0
vmax = 10
cmap = "turbo"

fig, axs = plt.subplots(1, 3, figsize=(18, 6), sharex=True, sharey=True)
(ds_radar.rainfall.sum(dim="time") / 12).plot(
    x="lon", y="lat", cmap=cmap, vmin=vmin, vmax=vmax, ax=axs[0], add_colorbar=False
)
axs[1].scatter(
    ds_city_gauges.lon,
    ds_city_gauges.lat,
    c=(radar_at_points / 12).sum(dim="time"),
    cmap=cmap,
    vmin=vmin,
    vmax=vmax,
    s=30,
)
(radar_along_cml.sum(dim="time") / 12).plg.plot_cmls(
    vmin=vmin, vmax=vmax, cmap=cmap, ax=axs[2]
);

../_images/notebooks_Get_grid_at_lines_and_points_31_0.png

[ ]:
