Calculate distances and find neighbors

[1]:

import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import xarray as xr

import poligrain as plg

Point-to-point distances

Get PWS dataset

[2]:

!curl -OL https://github.com/OpenSenseAction/training_school_opensene_2023/raw/main/data/pws/data_PWS_netCDF_AMS_float.nc

[3]:

ds_pws = xr.open_dataset("data_PWS_netCDF_AMS_float.nc")

# fix some issues with this dataset
ds_pws["time"] = pd.to_datetime(ds_pws.time.data, unit="s")
ds_pws["lon"] = ("id", ds_pws.lon.data)
ds_pws["lat"] = ("id", ds_pws.lat.data)

Project cooridnates from lon-lat to UTM zone for Europe

To do meaningful distance calculations we have to project the lon-lat coordinates first.

Info on the UTM zone 32N projection 'EPSG:25832' that is used can be found here

Note that plg.spatial.project_coordinates can also use a different source coordinate system, but its default is WGS 84 (lon and lat in degrees), which is 'EPSG:4326'

[4]:

ds_pws.coords["x"], ds_pws.coords["y"] = plg.spatial.project_point_coordinates(
    ds_pws.lon, ds_pws.lat, "EPSG:25832"
)

[5]:

ds_pws

[5]:

<xarray.Dataset> Size: 237MB
Dimensions:    (time: 219168, id: 134)
Coordinates:
  * time       (time) datetime64[ns] 2MB 2016-05-01T00:05:00 ... 2018-06-01
  * id         (id) <U6 3kB 'ams1' 'ams2' 'ams3' ... 'ams132' 'ams133' 'ams134'
    elevation  (id) <U3 2kB ...
    lat        (id) float64 1kB 52.31 52.3 52.31 52.35 ... 52.43 52.3 52.26
    lon        (id) float64 1kB 4.671 4.675 4.677 4.678 ... 5.036 5.041 5.045
    x          (id) float64 1kB 2.049e+05 2.052e+05 ... 2.301e+05 2.301e+05
    y          (id) float64 1kB 5.804e+06 5.803e+06 ... 5.802e+06 5.798e+06
Data variables:
    rainfall   (id, time) float64 235MB ...
Attributes:
    title:         PWS data from Amsterdam
    institution:   Wageningen University and Research, Department of Environm...
    history:       Test Version 0.1
    references:    https://doi.org/10.1029/2019GL083731
    date_created:  2022-10-18 10:32:00
    Conventions:   OPENSENSE V0
    location:      Amsterdam Metropolitan Area
    source:        Netamo
    comment:
[6]:

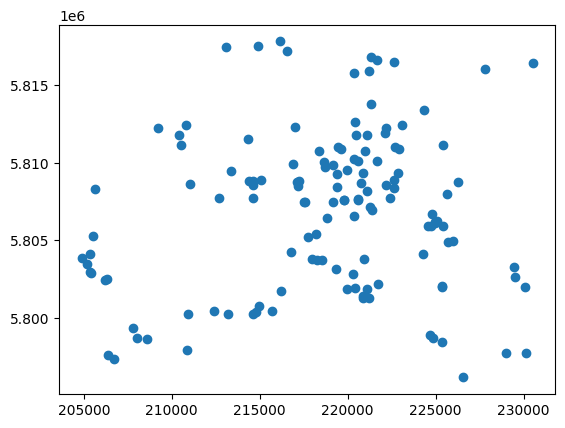

plt.scatter(ds_pws.x, ds_pws.y);
../_images/notebooks_Calculate_distances_9_0.png

Distance matrix

Calculate distance matrix

Beware that the distance matrix can become quite large when using large datasets, e.g. 800 MB if you use 10,000 stations against 10,000 stations from a country-wide PWS dataset, and calculation can take tens of seconds. We might add the option to calculate a sparse distance matrix only up the certain distances later, which reduced size and computation time signficantly.

For the typicall use case to find nearby stations, you can just use the nearest neighbor lookup described below for large datasets. The distance matrix can still be quite nice and handy for small regional datasets.

[7]:

distance_matrix = plg.spatial.calc_point_to_point_distances(
    ds_pws,
    ds_pws,
)

distance_matrix

[7]:

<xarray.DataArray (id: 134, id_neighbor: 134)> Size: 144kB
array([[    0.        ,   518.79828487,   531.99603941, ...,
        28532.23134009, 25291.03668667, 25994.5064412 ],
       [  518.79828487,     0.        ,   728.38027968, ...,
        28493.8273213 , 24995.94592241, 25633.14869253],
       [  531.99603941,   728.38027968,     0.        , ...,
        28000.75903421, 24846.06853717, 25603.62271956],
       ...,
       [28532.23134009, 28493.8273213 , 28000.75903421, ...,
            0.        , 14448.29575676, 18710.76846276],
       [25291.03668667, 24995.94592241, 24846.06853717, ...,
        14448.29575676,     0.        ,  4264.61589559],
       [25994.5064412 , 25633.14869253, 25603.62271956, ...,
        18710.76846276,  4264.61589559,     0.        ]])
Coordinates:
  * id           (id) <U6 3kB 'ams1' 'ams2' 'ams3' ... 'ams133' 'ams134'
  * id_neighbor  (id_neighbor) <U6 3kB 'ams1' 'ams2' ... 'ams133' 'ams134'
[8]:

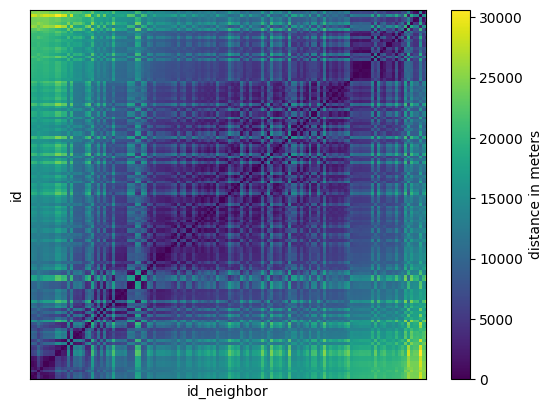

distance_matrix.plot(cbar_kwargs={"label": "distance in meters"})
plt.xticks([])
plt.yticks([]);
../_images/notebooks_Calculate_distances_13_0.png

Plot locations with distance to selected station

[9]:

pws_id = "ams63"

sc = plt.scatter(ds_pws.x, ds_pws.y, c=distance_matrix.sel(id=pws_id) / 1e3)
plt.scatter(ds_pws.sel(id=pws_id).x, ds_pws.sel(id=pws_id).y, c="r", marker="x")
plt.colorbar(sc, label="distance in km");

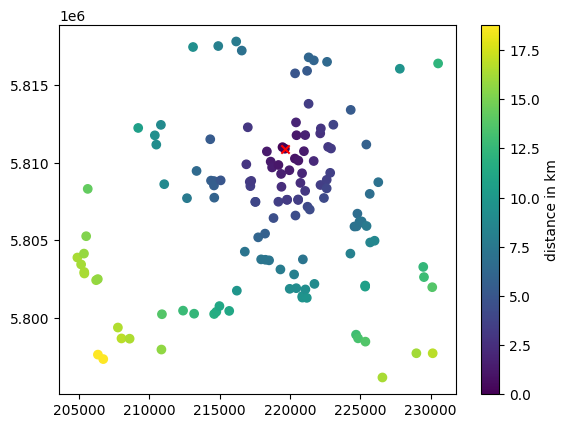

../_images/notebooks_Calculate_distances_15_0.png

Select neighbors within certain range from distance matrix

Note that this can be done more easily with the nearest neighbor lookup shown below. But you might findet having the distance matrix and getting the neigbors from there a nicer solution.

[10]:

pws_id = "ams63"

max_distance = 3e3  # this is in meteres

distances = distance_matrix.sel(id=pws_id)
selected_neighbor_ids = ds_pws.id.data[distances < max_distance]
selected_neighbor_ids

[10]:

array(['ams41', 'ams42', 'ams51', 'ams54', 'ams55', 'ams58', 'ams60',
       'ams61', 'ams62', 'ams63', 'ams67', 'ams69', 'ams70', 'ams71',
       'ams74', 'ams78', 'ams80', 'ams83', 'ams84', 'ams94', 'ams96',
       'ams97'], dtype='<U6')

Nearest neighbor lookup

This uses scipy.spatial.KDTree for fast lookup of nearest neighbors and distance calculation. In the resulting xarray.Dataset the IDs of the neighboring stations are None for the cases where their distance is larger than max_distance.

Get N closest points for two point datasets

[11]:

closest_neigbors = plg.spatial.get_closest_points_to_point(
    ds_points=ds_pws,
    ds_points_neighbors=ds_pws,
    max_distance=max_distance,
    n_closest=25,
)

[12]:

closest_neigbors

[12]:

<xarray.Dataset> Size: 57kB
Dimensions:      (id: 134, n_closest: 25)
Coordinates:
  * id           (id) <U6 3kB 'ams1' 'ams2' 'ams3' ... 'ams133' 'ams134'
Dimensions without coordinates: n_closest
Data variables:
    distance     (id, n_closest) float64 27kB 0.0 518.8 532.0 ... inf inf inf
    neighbor_id  (id, n_closest) object 27kB 'ams1' 'ams2' 'ams3' ... None None
[13]:

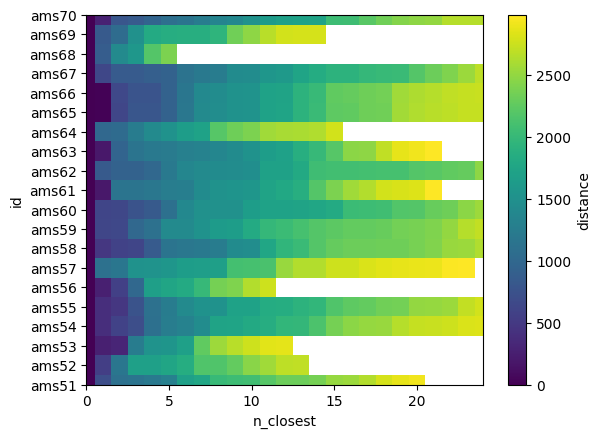

closest_neigbors.isel(id=slice(50, 70)).distance.plot();
../_images/notebooks_Calculate_distances_23_0.png

One interesting thing might be the distance of the closest station, which is at index 1 of n_closest in our case because at index 0 is each station itself.

Note that there is no data point if there is not neigbor within max_distance.

[14]:

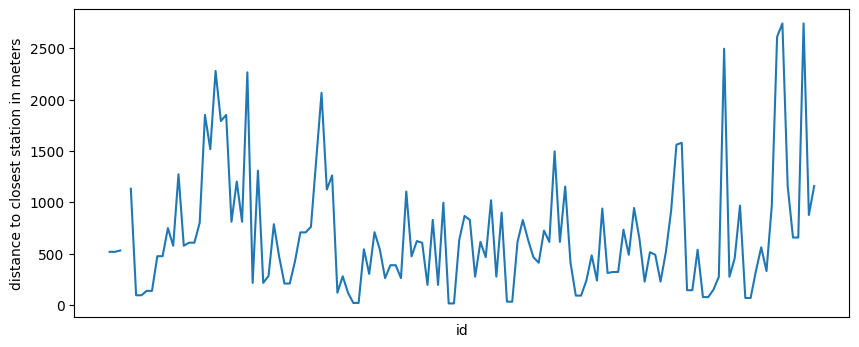

closest_neigbors.isel(n_closest=1).distance.plot(figsize=(10, 4))
plt.xticks([])
plt.ylabel("distance to closest station in meters");
../_images/notebooks_Calculate_distances_25_0.png

Get IDs of closest points

We can also get the station IDs of the closest neighbors. Note that they are different for each target station ID and they are sorted by ascending distance.

[15]:

pws_id = "ams63"

neighbor_ids = closest_neigbors.sel(id=pws_id).neighbor_id.dropna(dim="n_closest")
neighbor_ids

[15]:

<xarray.DataArray 'neighbor_id' (n_closest: 22)> Size: 176B
array(['ams63', 'ams61', 'ams70', 'ams58', 'ams71', 'ams74', 'ams51',
       'ams54', 'ams83', 'ams67', 'ams55', 'ams60', 'ams84', 'ams69',
       'ams80', 'ams94', 'ams78', 'ams62', 'ams96', 'ams97', 'ams42',
       'ams41'], dtype=object)
Coordinates:
    id       <U6 24B 'ams63'
Dimensions without coordinates: n_closest

These should be the same neighboring station IDs as derive from the distance matrix above, since we have chosen the same ID as target station. This is, however, only true if n_closets does not cut off the list for get_closest_points_to_point(). For the chosen values in this example the two sets of neighboring IDs should be the same. Let’s check that.

[16]:

set(selected_neighbor_ids) == set(neighbor_ids.data)

[16]:

True

Plot stations and mark closest neighbors

[17]:

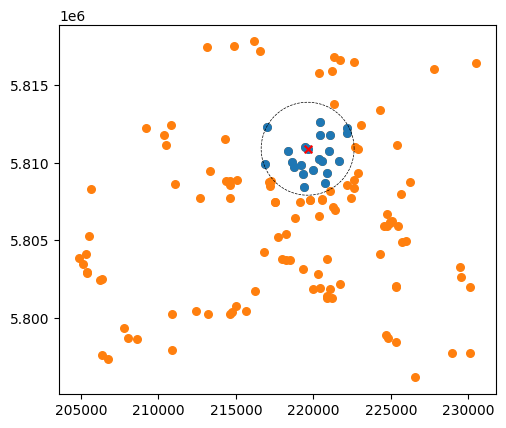

fig, ax = plt.subplots()
ax.set_aspect("equal")

ax.scatter(ds_pws.x, ds_pws.y, c="C1", s=30)

neighbor_ids = closest_neigbors.sel(id=pws_id).neighbor_id.dropna(dim="n_closest")
ds_pws_neighbors = ds_pws.sel(id=neighbor_ids)
ax.scatter(ds_pws_neighbors.x, ds_pws_neighbors.y, c="C0", s=30)

ax.scatter(
    ds_pws.sel(id=pws_id).x, ds_pws.sel(id=pws_id).y, color="r", s=30, marker="x"
)

# Plot a circel with max_distance to see if the selections fits
an = np.linspace(0, 2 * np.pi, 100)
ax.plot(
    ds_pws.x.sel(id=pws_id).data + max_distance * np.cos(an),
    ds_pws.y.sel(id=pws_id).data + max_distance * np.sin(an),
    color="k",
    linestyle="--",
    linewidth=0.5,
)
plt.title("");
../_images/notebooks_Calculate_distances_32_0.png

Note that not all stations within the circle will be marked in case that n_closest cuts off the list of nearby stations.

Line-to-points distances

This example shows how to use plg.spatial.get_closest_points_to_line to find points close to CMLs. We use CMLs from the OpenMerge dataset. The full dataset contains raingauges, but they where not unzippet and thus not readily available. We instead modify some of the CMLs so they look like raingauges by using the CML midpoints.

Download CML data from training school example

[18]:

!curl -OL https://github.com/OpenSenseAction/training_school_opensene_2023/raw/main/data/cml/openMRG_example.nc

Remove unnecessary data and turn some CMLs into points

[19]:

# Load downloaded CML data
ds_cmls = xr.open_dataset("./openMRG_example.nc")

# We only need metadata, so we drop tsl and rsl here
ds_cmls = ds_cmls.drop_vars(["tsl", "rsl"]).drop_dims("time")

# Select some cmls, these are used as rain gauges
gauges_ind = np.arange(0, ds_cmls.cml_id.size, 20)


# Get cml indices that is not rain gauges
cml_ind = np.arange(0, ds_cmls.cml_id.size)
cml_ind = cml_ind[~np.isin(cml_ind, gauges_ind)]

# Update both datasets with new non-overlapping indices
ds_gauges = ds_cmls.isel(cml_id=gauges_ind)
ds_cmls = ds_cmls.isel(cml_id=cml_ind)

# Restructure ds_gauges so it has PWS standard names:
ds_gauges = ds_gauges.drop_dims("sublink_id").rename({"cml_id": "id"})

# Use midpoint as gauge point
ds_gauges.coords["lat"] = (ds_gauges.site_0_lat + ds_gauges.site_1_lat) / 2
ds_gauges.coords["lon"] = (ds_gauges.site_0_lon + ds_gauges.site_1_lon) / 2
ds_gauges = ds_gauges.drop_vars(
    [
        "site_0_lat",
        "site_1_lat",
        "site_0_lon",
        "site_1_lon",
    ]
)

# Reformat ids to str, a more common format
ds_gauges.coords["id"] = ds_gauges.id.astype(str)
ds_cmls.coords["cml_id"] = ds_cmls.cml_id.astype(str)

Project cooridnates from lon-lat to UTM zone for Europe

[20]:

# Project coordinates for rain gauges
ds_gauges.coords["x"], ds_gauges.coords["y"] = plg.spatial.project_point_coordinates(
    ds_gauges.lon, ds_gauges.lat, "EPSG:25832"
)

# Project coordinates for CMLs
(
    ds_cmls.coords["site_0_x"],
    ds_cmls.coords["site_0_y"],
) = plg.spatial.project_point_coordinates(
    ds_cmls.site_0_lon, ds_cmls.site_0_lat, "EPSG:25832"
)
(
    ds_cmls.coords["site_1_x"],
    ds_cmls.coords["site_1_y"],
) = plg.spatial.project_point_coordinates(
    ds_cmls.site_1_lon, ds_cmls.site_1_lat, "EPSG:25832"
)

Nearest neighbor lookup

Uses KDTree for fast neighbour lookup

[21]:

max_distance = 20000  # in meters due to the projection EPSG:25832
closest_neigbors = plg.spatial.get_closest_points_to_line(
    ds_cmls, ds_gauges, max_distance=max_distance, n_closest=25
)

[22]:

closest_neigbors

[22]:

<xarray.Dataset> Size: 167kB
Dimensions:      (cml_id: 345, n_closest: 25)
Coordinates:
  * cml_id       (cml_id) <U21 29kB '10002' '10003' '10004' ... '10363' '10364'
Dimensions without coordinates: n_closest
Data variables:
    distance     (cml_id, n_closest) float64 69kB 2.745e+03 3.167e+03 ... inf
    neighbor_id  (cml_id, n_closest) object 69kB '10001' '10041' ... None None
[23]:

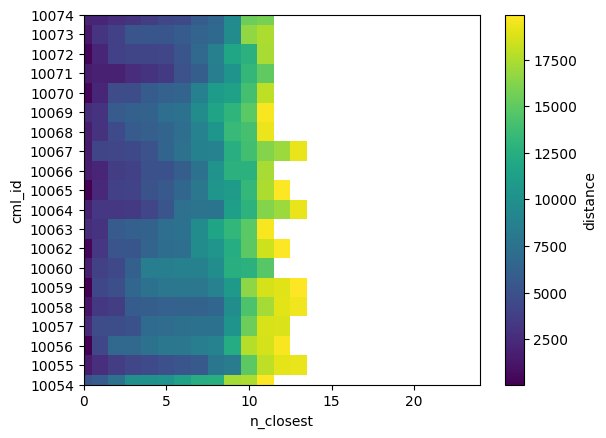

closest_neigbors.isel(cml_id=slice(50, 70)).distance.plot()

[23]:

<matplotlib.collections.QuadMesh at 0x1359292a0>
../_images/notebooks_Calculate_distances_44_1.png

We can get the nearest neighbour by selecting the first element in n_closest.

[24]:

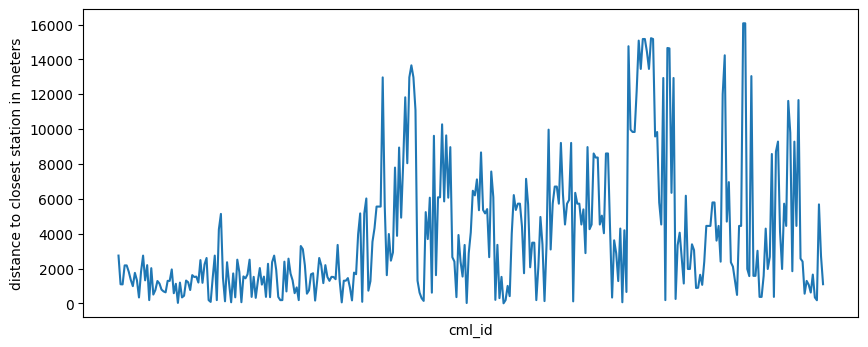

closest_neigbors.isel(n_closest=0).distance.plot(figsize=(10, 4))
plt.xticks([])
plt.ylabel("distance to closest station in meters");
../_images/notebooks_Calculate_distances_46_0.png

We can also get the IDs of the closest gauges of a CML

[25]:

gauge_id = "10002"
neighbor_ids = closest_neigbors.sel(cml_id=gauge_id).neighbor_id.dropna(dim="n_closest")
neighbor_ids

[25]:

<xarray.DataArray 'neighbor_id' (n_closest: 13)> Size: 104B
array(['10001', '10041', '10221', '10081', '10101', '10021', '10181',
       '10361', '10121', '10061', '10141', '10341', '10161'], dtype=object)
Coordinates:
    cml_id   <U21 84B '10002'
Dimensions without coordinates: n_closest

Plot CMLs that are close to rain gauges

[26]:

gauge_ids = [13, 16]  # [13, 16] # Select only 2 rain gauges
max_distance = 5500  # Distance in meters
closest_neigbors = plg.spatial.get_closest_points_to_line(
    ds_cmls, ds_gauges.isel(id=gauge_ids), max_distance=max_distance, n_closest=1
).isel(n_closest=0)

[27]:

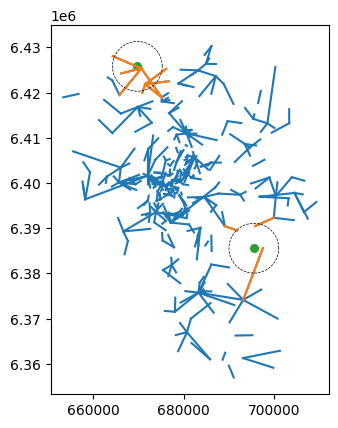

fig, ax = plt.subplots()
ax.set_aspect("equal")

# Plot all CMLs
for cml_id in ds_cmls.cml_id:
    plt.plot(
        [ds_cmls.sel(cml_id=cml_id).site_0_x, ds_cmls.sel(cml_id=cml_id).site_1_x],
        [ds_cmls.sel(cml_id=cml_id).site_0_y, ds_cmls.sel(cml_id=cml_id).site_1_y],
        "C0",
    )

# Plot CMLs close to selected gauges
nearby_cml_id = closest_neigbors.neighbor_id.dropna(dim="cml_id").cml_id
for cml_id in nearby_cml_id:
    plt.plot(
        [ds_cmls.sel(cml_id=cml_id).site_0_x, ds_cmls.sel(cml_id=cml_id).site_1_x],
        [ds_cmls.sel(cml_id=cml_id).site_0_y, ds_cmls.sel(cml_id=cml_id).site_1_y],
        "C1",
    )

# Plot selected rain gauges
ax.scatter(ds_gauges.isel(id=gauge_ids).x, ds_gauges.isel(id=gauge_ids).y, c="C2", s=30)

# Plot a circel with max_distance to see if the selections fits
an = np.linspace(0, 2 * np.pi, 100)
for gauge_id in gauge_ids:
    ax.plot(
        ds_gauges.x.isel(id=gauge_id).data + max_distance * np.cos(an),
        ds_gauges.y.isel(id=gauge_id).data + max_distance * np.sin(an),
        color="k",
        linestyle="--",
        linewidth=0.5,
    )
    plt.title("")
../_images/notebooks_Calculate_distances_51_0.png
[ ]:
